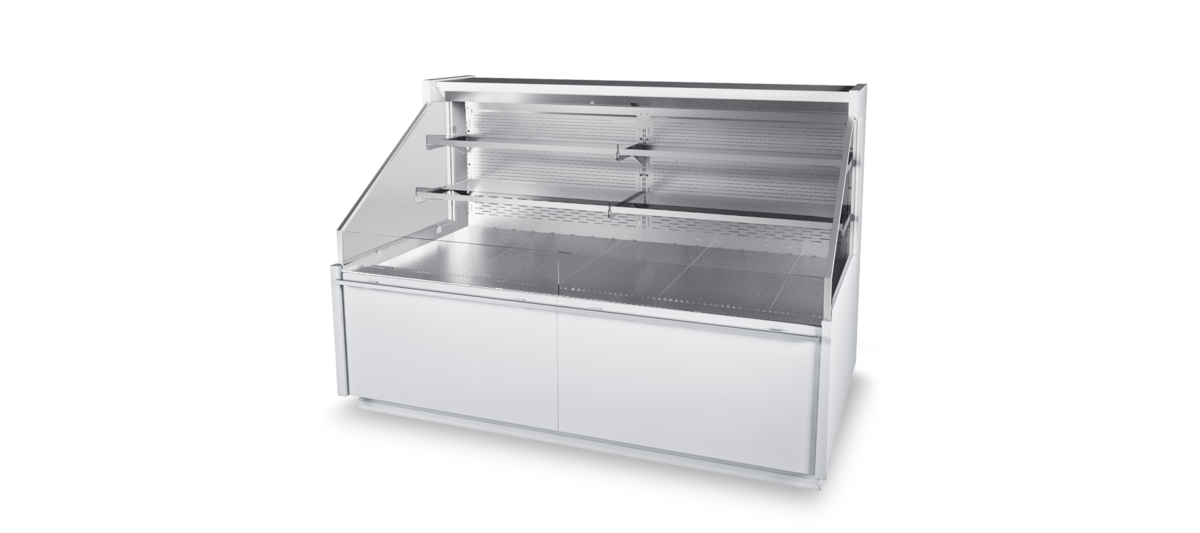

Chronos Family

SV+1 | SV+2 | SV+3

Available versions:
B+1 H.1230mm, B+2 H. 1390mm, B+3 H. 1590mm

Available lengths:
1250*, 1875*, 2188 (headpiece)*, 2500*, 3750mm
Corners available: 45° and 90° open and closed

Dimensions:
Outer Depth 1100mm, Display Depth 850 mm

Temperature class 3M1

Refrigerant Remote: CO2/R449A/R513A
Refrigerant Plug-in: R290*

Standard features:

  • LED Lighting under canopy
  • Display and internal parts in Stainless Steel AISI 304
  • Evaporator treated in cataphoresis
  • Tiltable shelves in tempered glass
  • Front panel in standard RAL colours
  • Energy saving fans
  • Can be joined to service counters

Options:

  • Controller from Danfoss, Carel, Eckelmann, etc.
  • Product retainer riser in glass or Plexiglas
  • Price holder
  • LED lighting under shelves
  • Interior painted in standard RAL colours

** The energy class information given here refers to standard models and precise product configurations and fittings. Other configurations may result in a significant change in the energy class information.

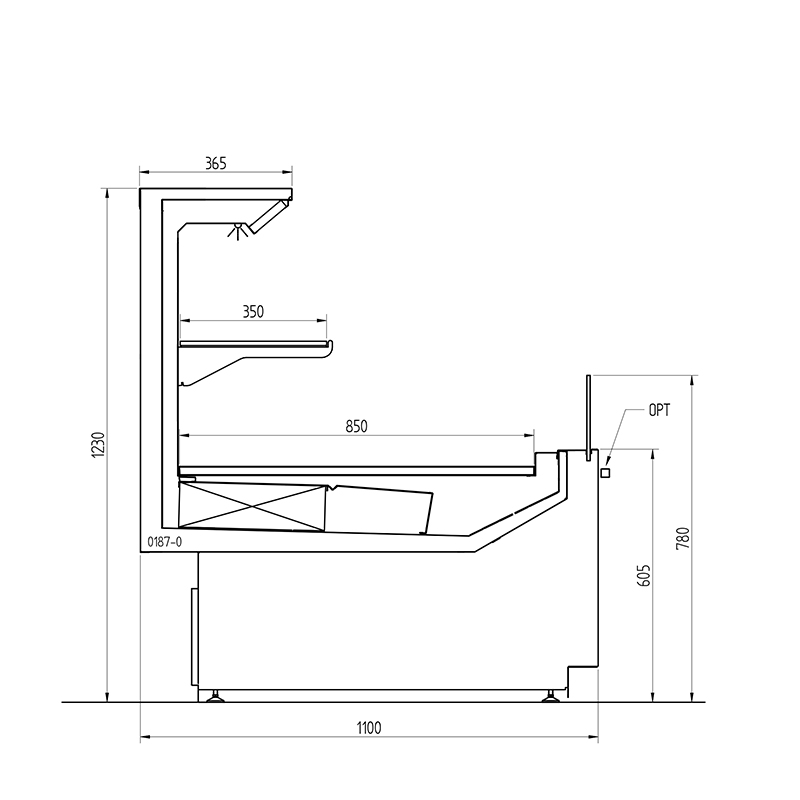

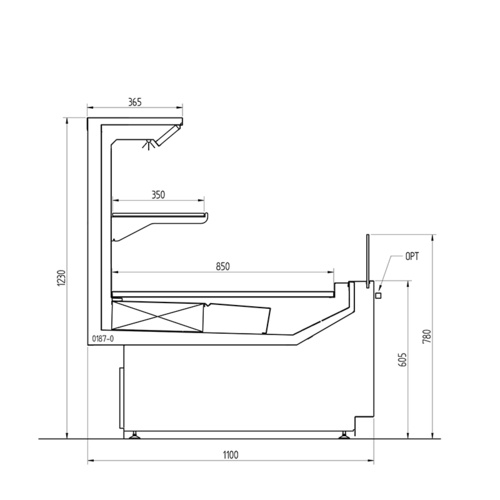

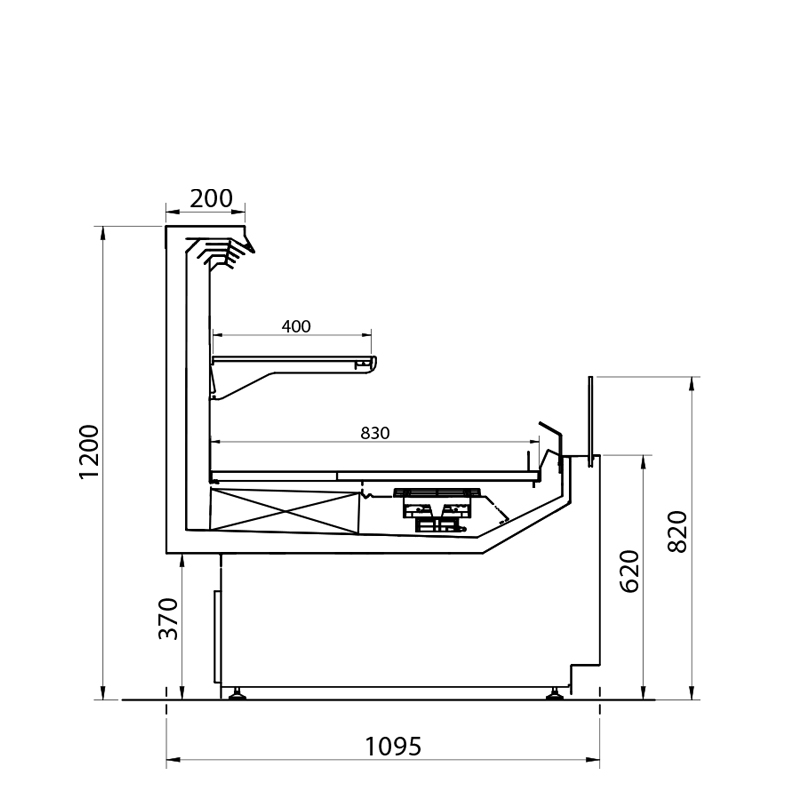

SV+1

SV+1

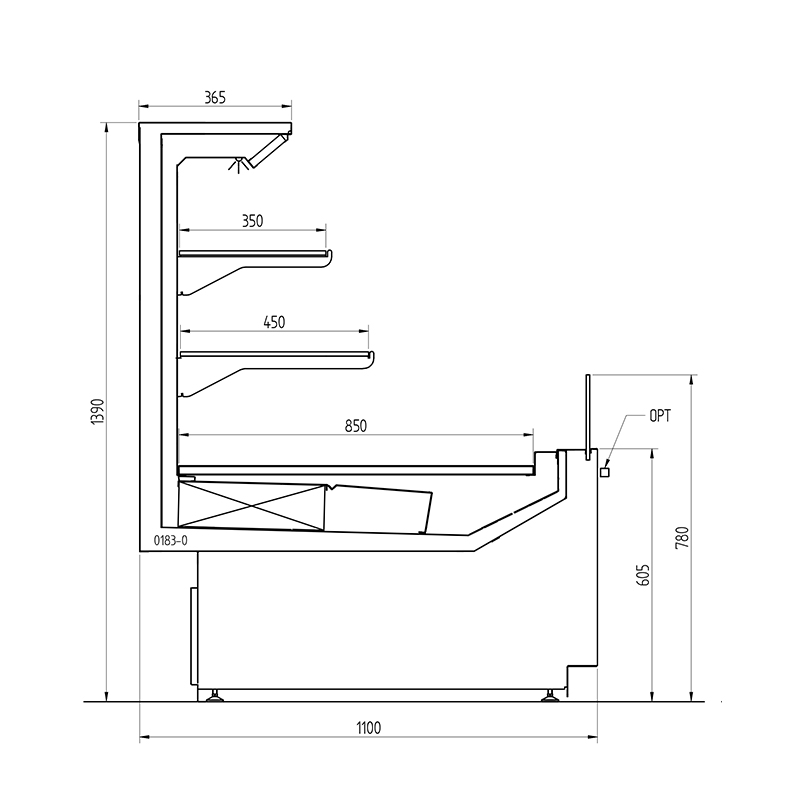

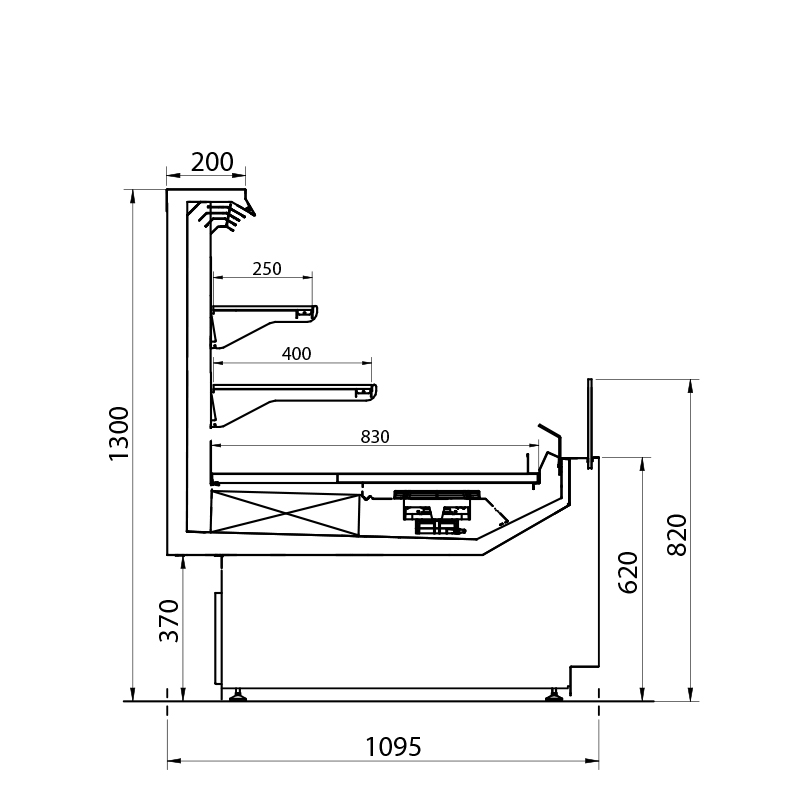

SV+2

SV+2

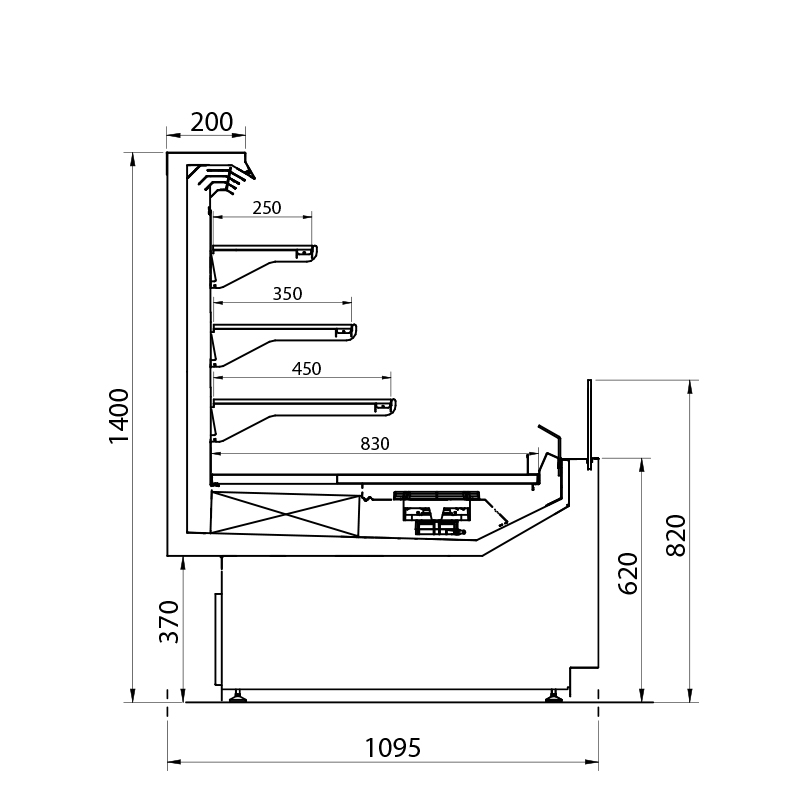

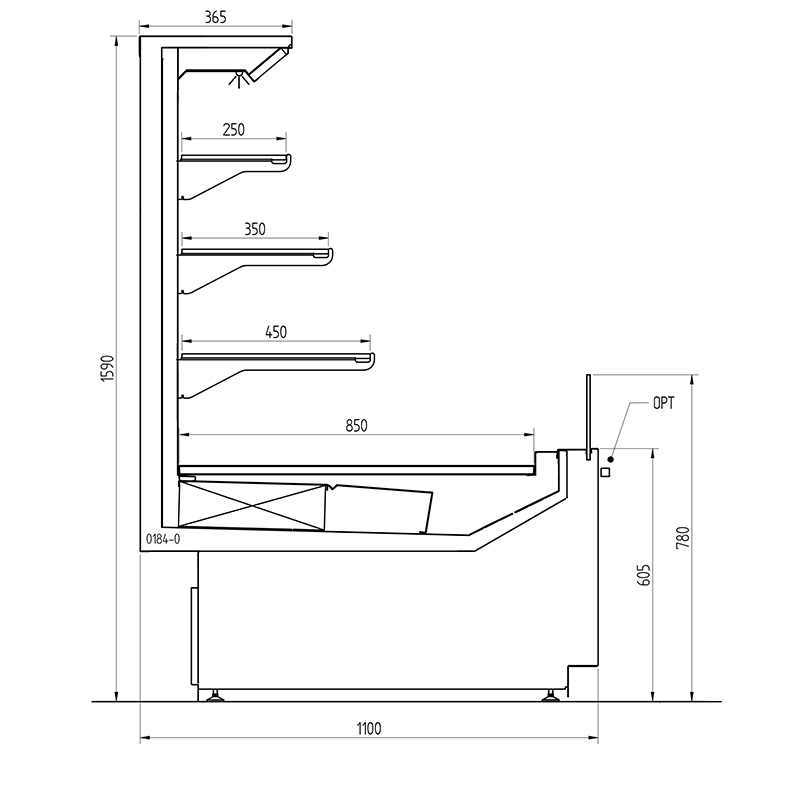

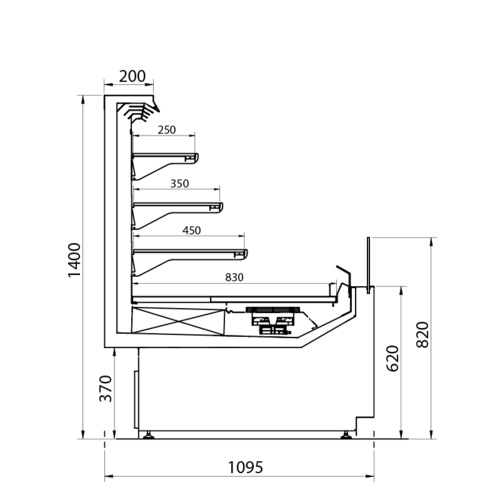

SV+3

SV+3
