Orione

Orione

Orione is a  versatile multideck cabinet in stainless steel  ideal for displaying delicatessen products, cheese, and drinks but also perfect as a back counter. Equipped with double-pane sliding glass doors it is also perfect for the display of fresh meat.

  • Available with or w/o base, with or w/o sliding glass doors, Plug-In or remote
  • Interior and exterior in RAL colour on request
  • Cataphoresis treated evaporator
  • Range of accessories and customisations
SA = Slim without base | SB = Slim with base | LA = Large without base | LB = Large with base

Available versions:
SA H.1590mm, SB H.2000mm, LA H.1590mm, LB H.2000mm

Available lengths:
1000*, 1250*, 1500, 1800, 2500 mm

Dimensions:
Display Depth 650mm, 800 mm

Temperature class: 3M2 without doors, 3M1 with doors
Energy Efficiency Class: without doors = F, with doors = C

Refrigerant remote cabinet: CO2/R449A/R513A
Refrigerant Plug-in: R290*

Standard features:

  • Display, shelves and visible parts in stainless steel
  • LED top lighting 3000°K
  • Adjustable shelves in stainless steel
  • Cataphoresis treated evaporator
  • Electronic temperature control
  • Available with or without base

Options:

  • Controller from Danfoss, Wurm, Eckelmann, etc.
  • Interior and exterior in RAL colour on request
  • Glass shelves on request
  • LED lighting under shelves
  • Price trim holder
  • Bar

** The energy class information given here refers to standard models and precise product configurations and fittings. Other configurations may result in a significant change in the energy class information.

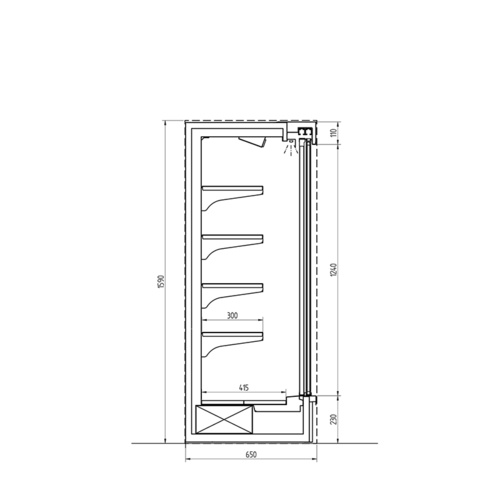

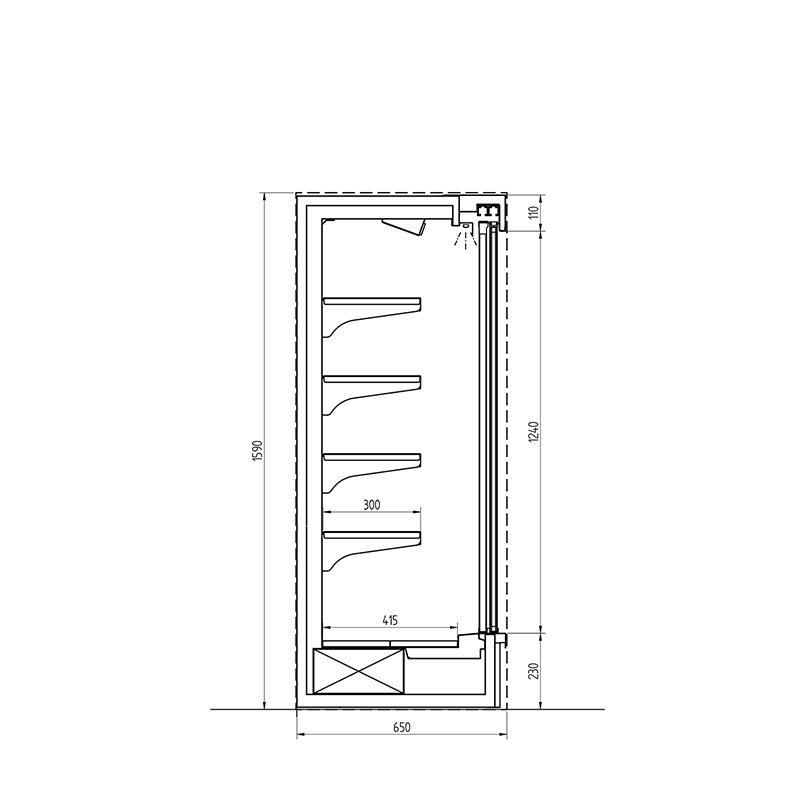

SA

SA

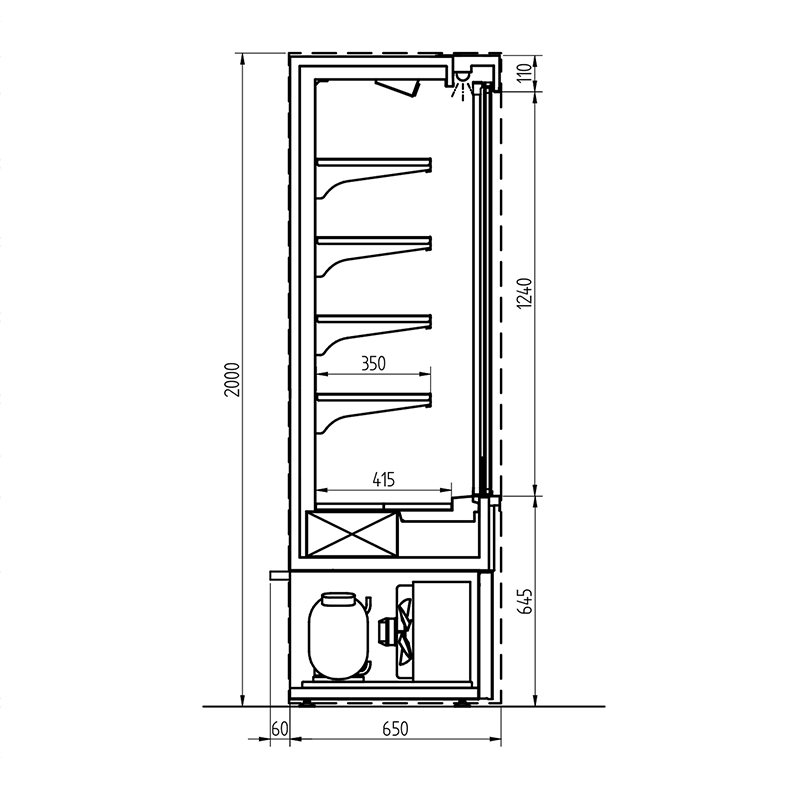

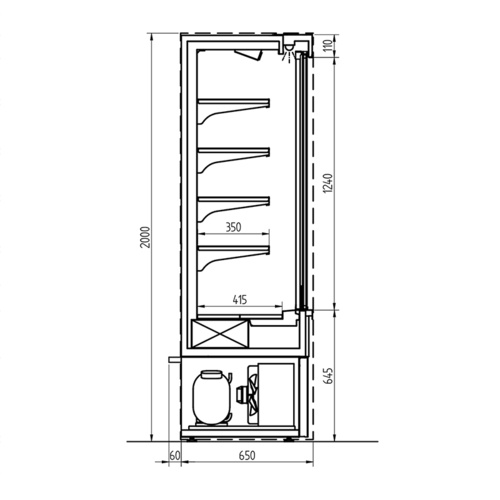

SB

SB

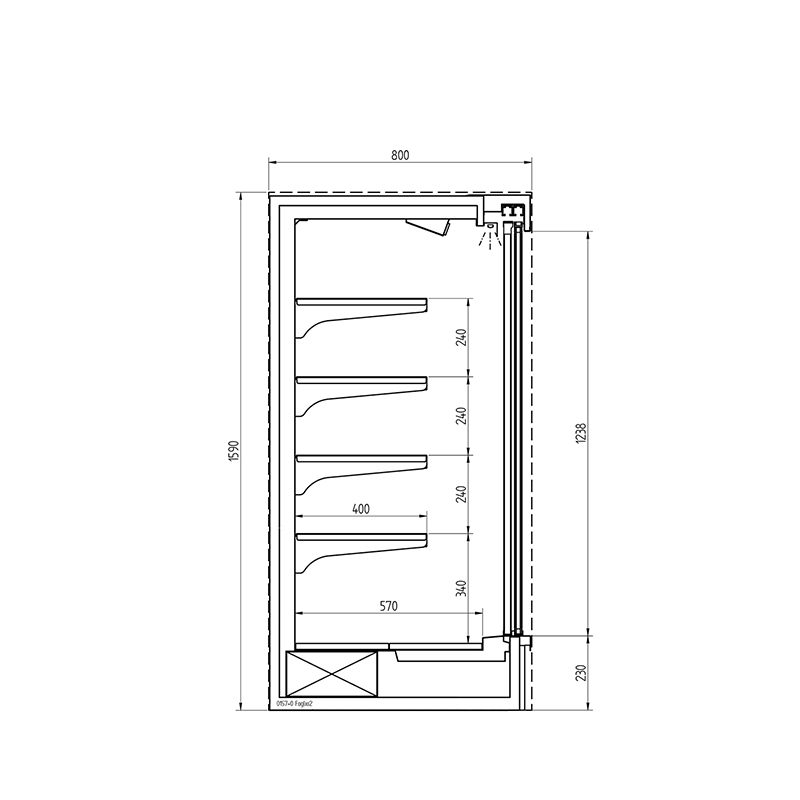

LA

LA

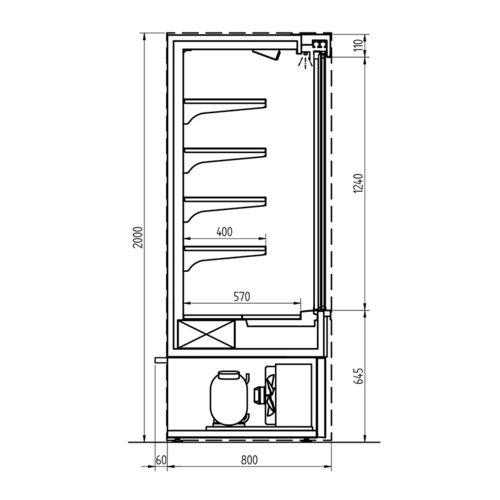

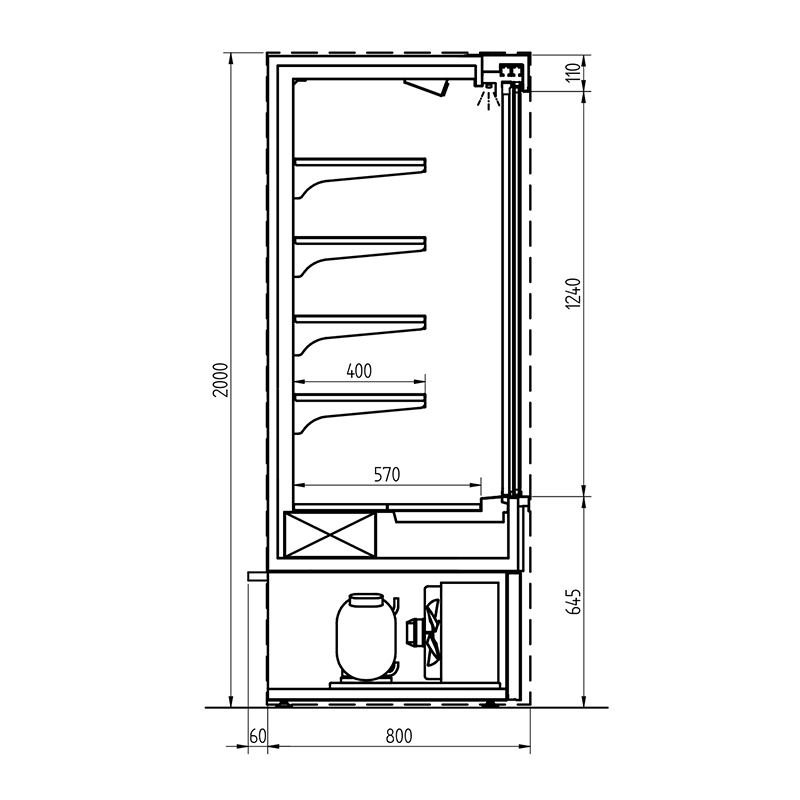

LB

LB
